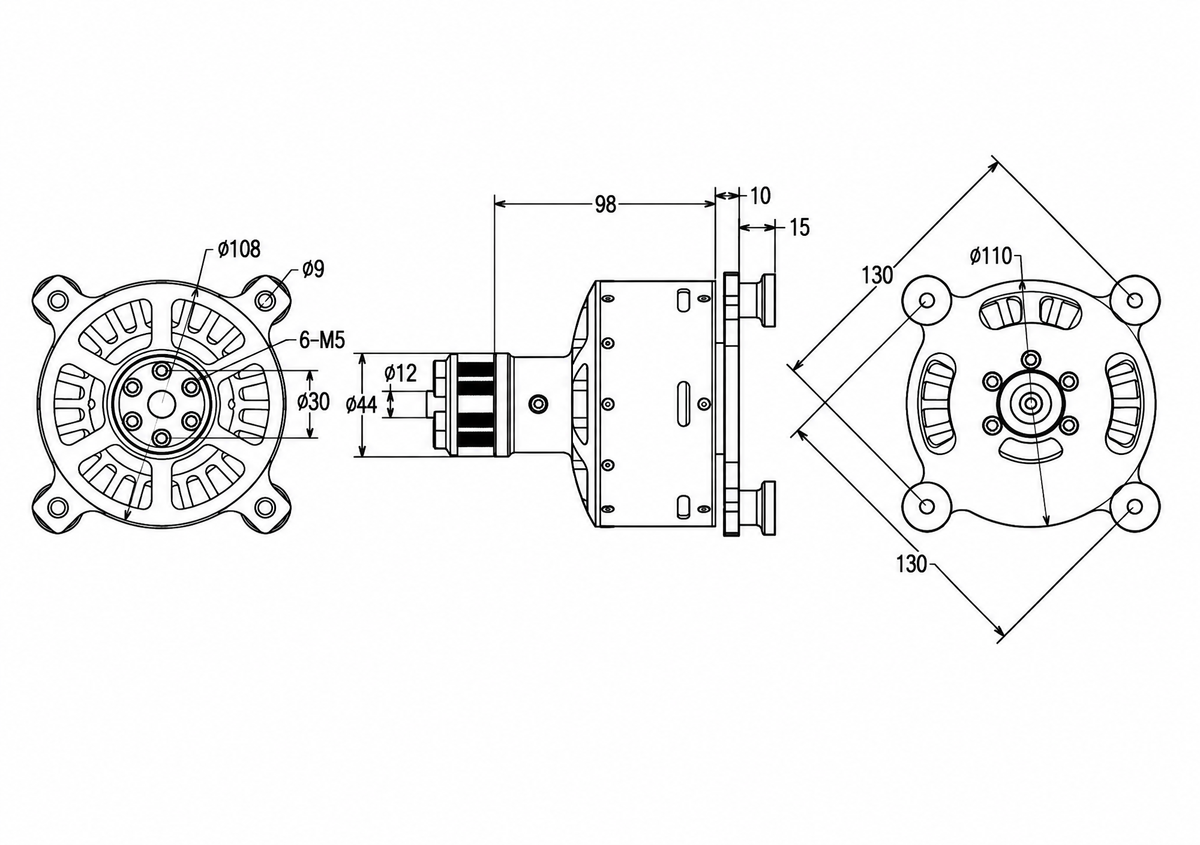

Dimensional drawing

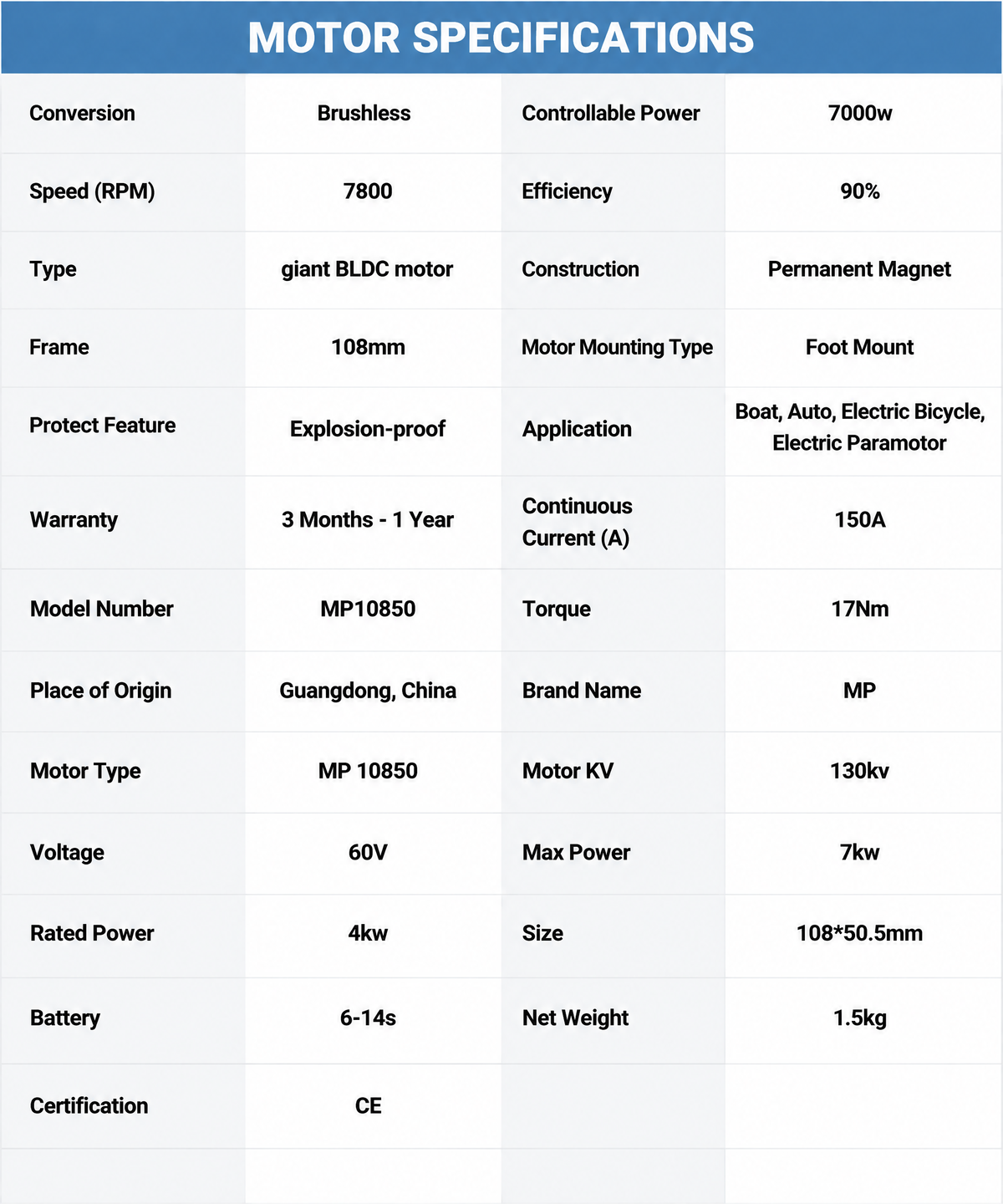

Detail chart
Factory environment
Free R C hobby was established in 2012 and located at Dongguan, known as the world factory. As of now, Free R C hobby 's modern factory spans over 1800 square meters and is equipped with over 10 C N C lathes, milling and engraving machines, and a team made up of 25 innovative and experienced engineers, designers and workers.Free R C Hobby boasts a monthly production capacity of over 50,000 sets of various brushless motor, E S C, and accessories. 9 0 % of Free R C Hobby's products are sold abroad, spanning over 50 countries and regions, and our propulsion solutions are primarily used in unmanned aerial vehicle,electric Vertical Take-off and Landing, electric paramotor, efoil, surfboard, robotic and the electric tool industry.
Dynamic balancing machine
Dynamic balancing machine A kind of balancing machine. Used to measure the size and position of the unbalance of a rotating object (rotor) one.The main performance of the dynamic balancing machine is to use the minimum residual unbalance and dynamic balancing machine reduction rate of two comprehensive indicators, the former is the balance function of the rotor to achieve the minimum value of residual unbalance, it is a measure of the highest balance of the balance machine index; The latter is the ratio of the reduced unbalance to the initial unbalance after one correction.
Winding machine
The use of winding machine can wind a large number of coils in a short time to meet the needs of large-scale production.Can work for a long time without interruption, can effectively shorten the production cycle, for urgent orders or mass production tasks, the advantage is particularly obvious. Precise winding operation can be performed according to preset procedures to ensure the accuracy and consistency of coil turns, wire diameter, winding shape and other parameters, thereby improving product quality. For example, in the manufacture of electronic equipment, precisely wound coils can ensure stable equipment performance.The line is tight and neat, the line diameter deformation is not affected, the product precision is high, there is no scratching phenomenon, so that the coil made is of good quality.
Brushless motor comprehensive tester
It can automatically complete all electrical performance test items such as stator insulation resistance, power frequency voltage withstand, coil DC resistance, turn to turn voltage withstand at one time, which greatly saves test time and improves production efficiency.Each test item can be opened or blocked at will, and the criteria for judging eligibility can be set at will. No need to set the instrument range, the general operator can immediately automatically sample any unknown parameters of the motor stator test data, and develop automatic discrimination standards, convenient and fast.High test accuracy: with automatic range conversion tracking test function, compared with other similar instruments with higher overall test accuracy. It can automatically identify some three-phase motor winding turns are the same, but because of the internal and external winding process caused by the small difference in coil resistance, so as to more accurately analyze the error of the number of turns of the coil or the small difference in the diameter of the enameled wire, to ensure the accuracy of the test results.
Foreign trade cooperation
In the past few years, our long-term cooperation with customers has achieved great success. Not only has it led to business growth, it has also built deep customer relationships. The close cooperation with customers allows us to grow together and achieve win-win results. We value the partnership with our customers, which helps us to better understand their needs and provide better service. Working with customers is an enjoyable choice. We will continue to maintain efficient cooperation methods to create more value for customers

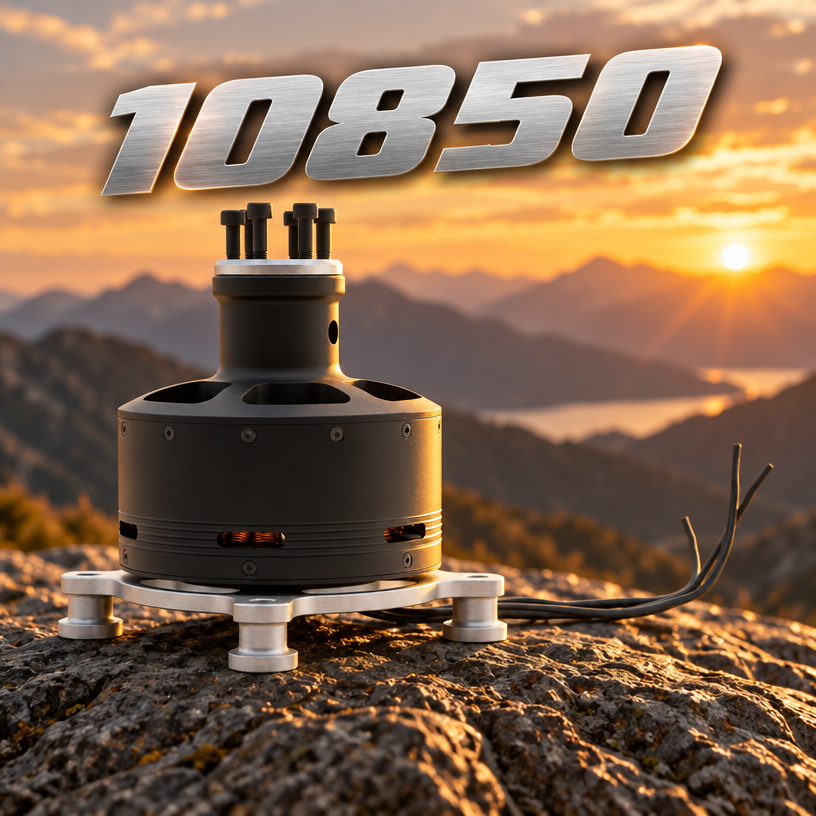

MP10850 Motor use
Mainly used in electric scooter Electric motors are mainly used in scooters to provide power so that they can travel. The efficient performance of the electric motor makes the scooter more effortless in the process of driving, while greatly improving speed and stability. In addition, the use of electric motors is not only environmentally friendly, but also helps people get to their destinations faster and easier. The excellent climbing ability of the electric motor also makes the scooter perform well in urban terrain
Transportation channels
Have USP, FedEX , DHL, TNT, UP SIn different ways.FedEX Known for its fast transportation speed and high service quality, it can provide customers with fast and reliable express services, and is suitable for the transportation of foreign trade goods with high timeliness requirements.DHL has branches and service networks in more than 220 countries and regions around the world, with strong transportation capabilities and logistics solutions to meet the diverse foreign trade transportation needs of different customers.Mainly FedEX and DHL
Company certificate display
We strive to satisfy your needs as they define them and achievetheir expectations while delivering value. This is accomplished byimplementing thehighest industry standards to coordinate and direct
