FRC 24S 300A high voltage powerful ESC for heavy lift drone
FRC 24S 300A high voltage powerful ESC for heavy lift drone
Share
77 in stock
SKU:FRCMC24S300A
View full detailsESC Introduction
-
This brushless ESC uses advanced algorithms to precisely control the commutation of the brushless motor, and achieves reliable high-voltage drive by using professional industrial-grade brushless motor drive chips
ESC Data
-
Voltage input range :DC50-100V Max DC100V
Battery cells: 12-24S
300A version is max current and rated current is 240A, Please ensure that the heat dissipation and ventilation conditions are good, the case temperature is below 80 degrees, which is normal temperature, and the peak current is 300A, 15 seconds
Control signal standard:
Compatible with model airplane remote control cycle is 50Hz, high level time is 1000-2000us command, the highest input frequency is 400Hz,. Note: The maximum input pulse width must be below 2050us
The remote control input signal position is isolated from the power supply position, and remote control signals is transmitted internally through optocoupler isolation. The red line of the remote control line must be provided with 5-8v power supply by the receiver or flight control.
Calibrate the throttle range, same as normal ESC: before the power supply, first enter
the maximum value of RC signal, then power on, ESC will produces a series of sounds;
when sounds stop, enter minimum value of RC signal, ESC will produces a series of
sounds again; after sounds stop, power off. Then ESC can be used once power on. Refer
to details of instruction

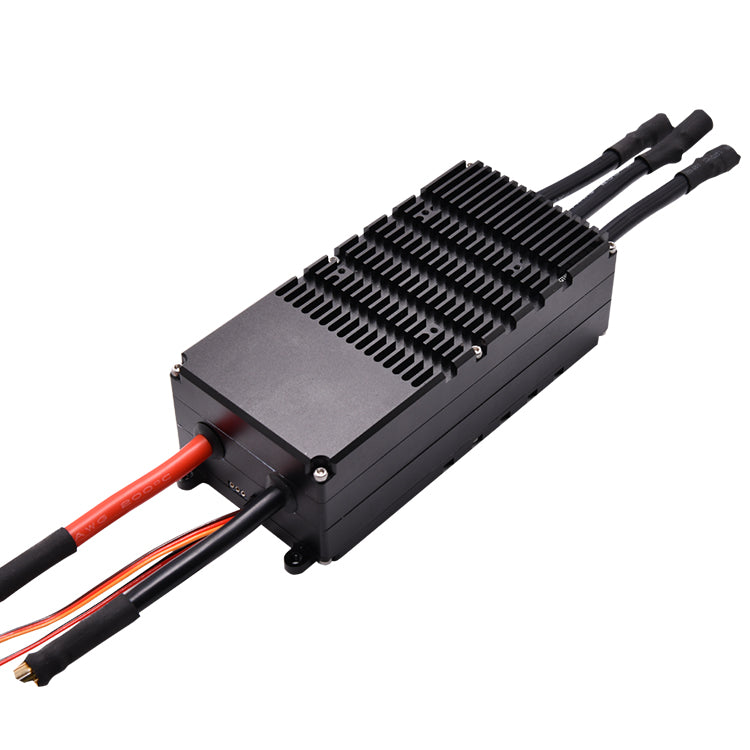

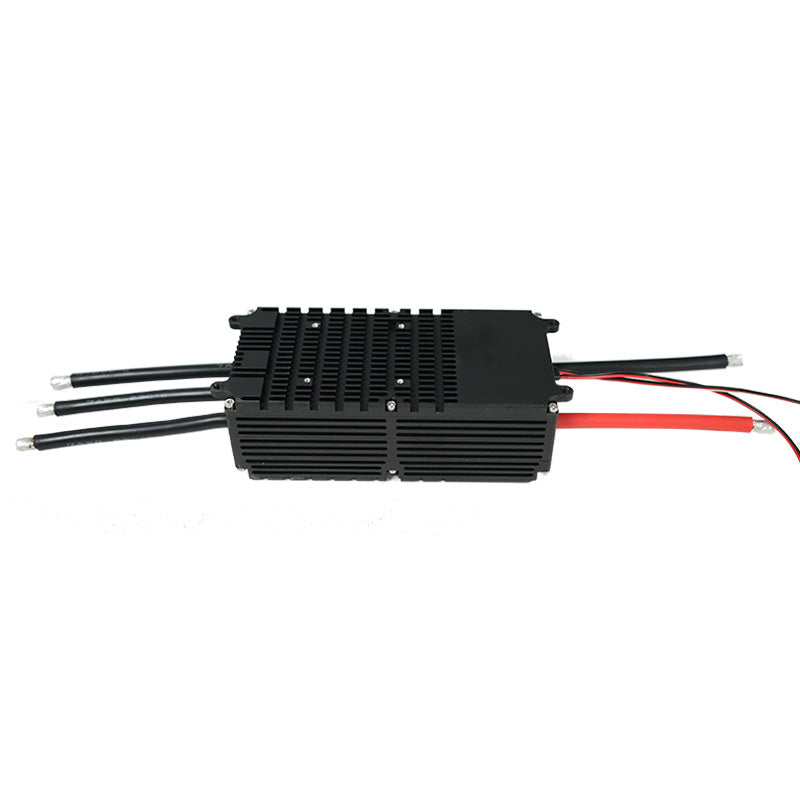

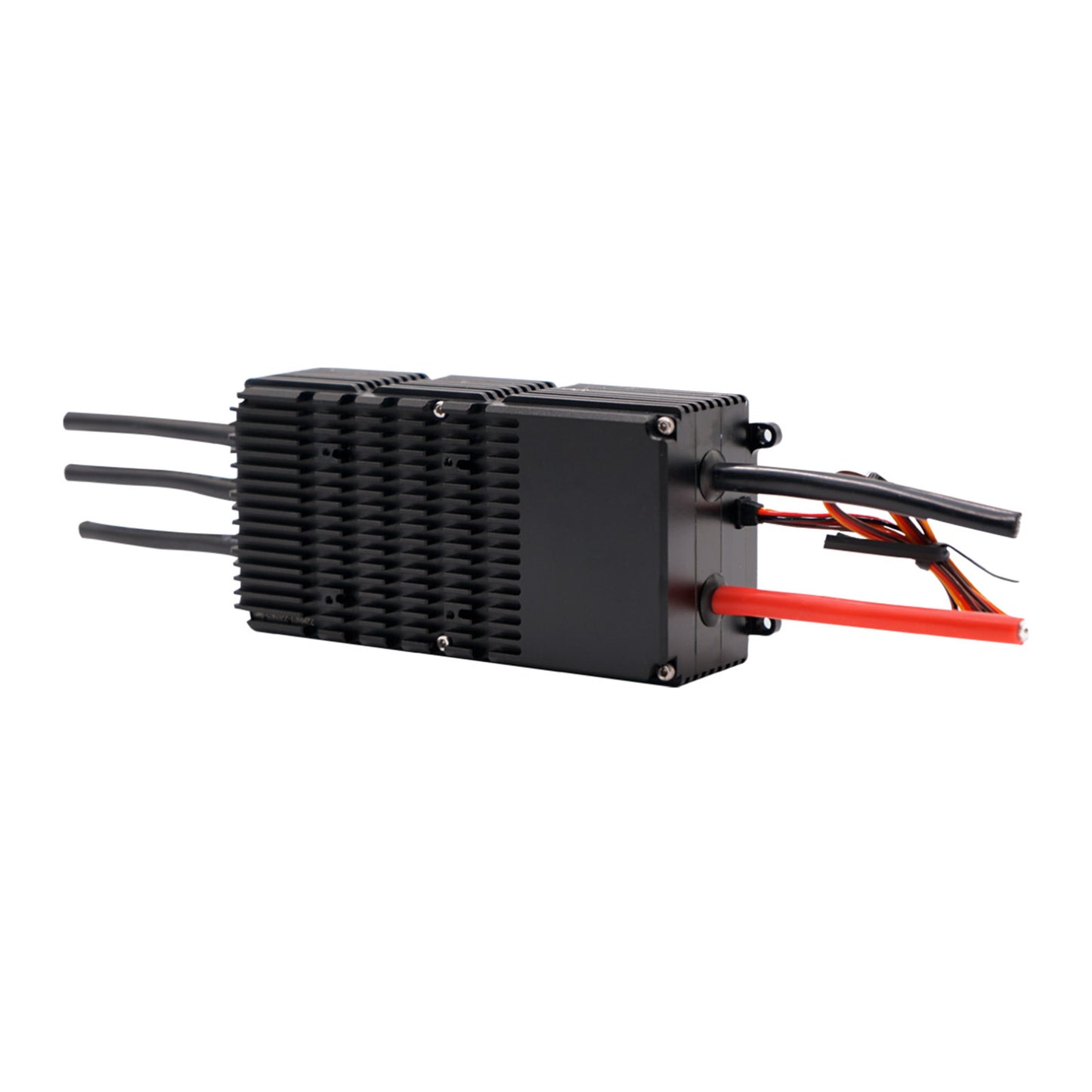

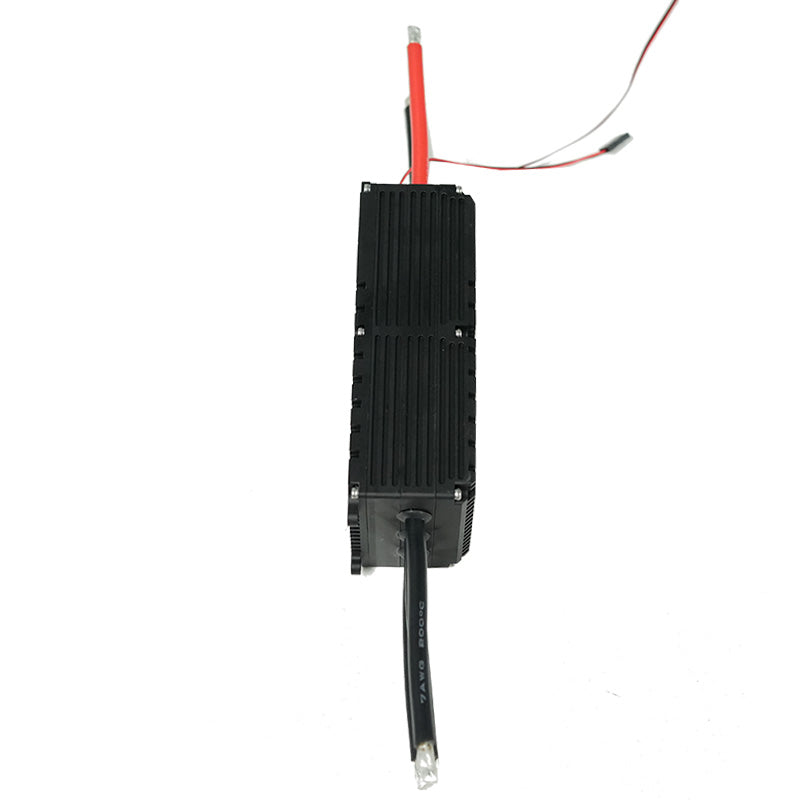

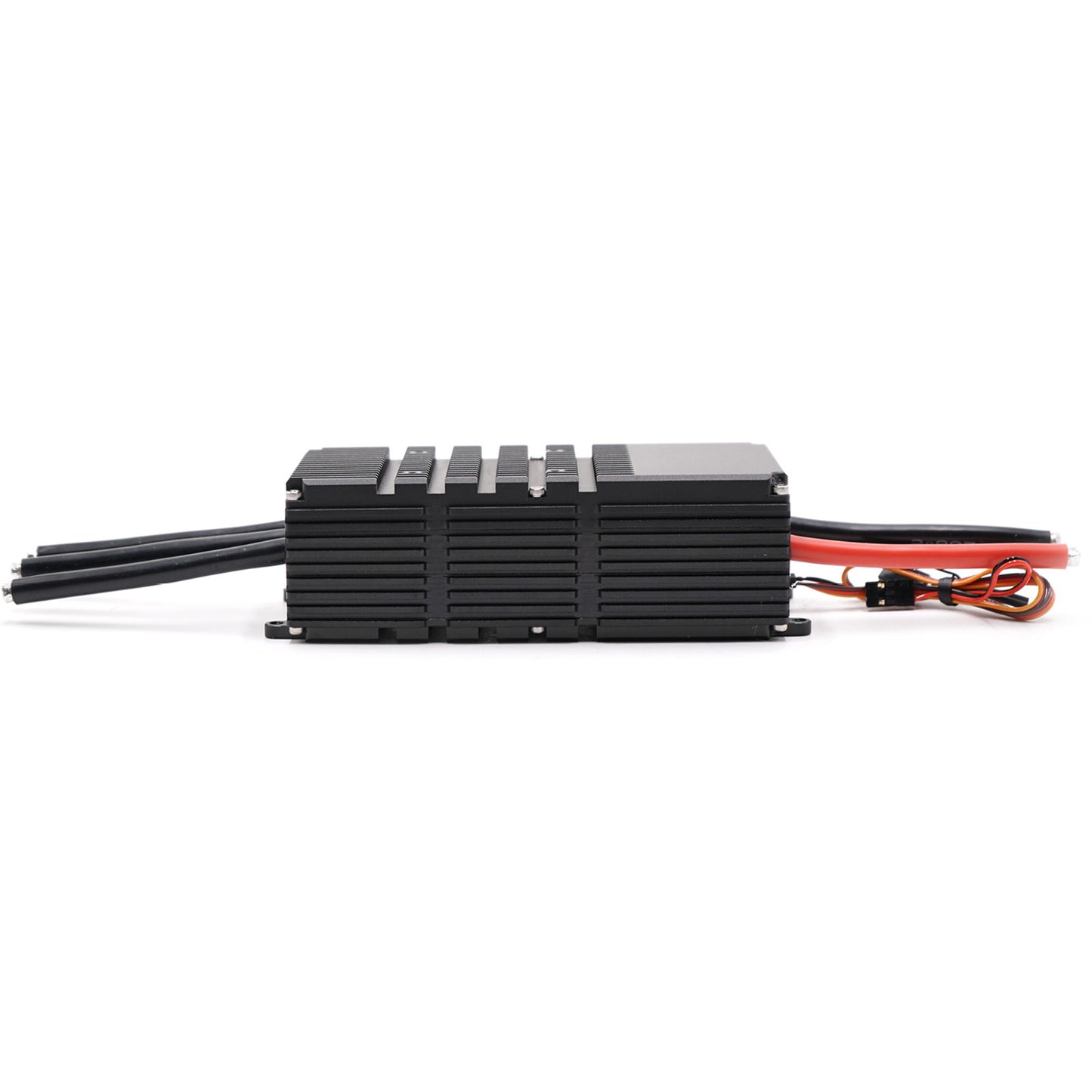

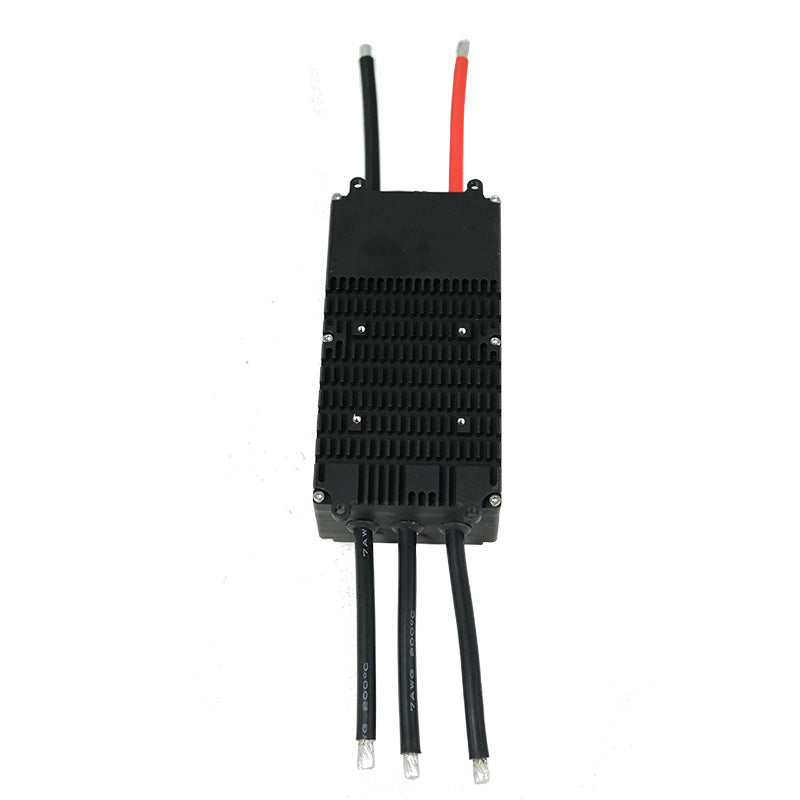

Product Image
Factory environment
Free R C hobby was established in 2012 and located at Dongguan, known as the world factory. As of now, Free R C hobby 's modern factory spans over 1800 square meters and is equipped with over 10 C N C lathes, milling and engraving machines, and a team made up of 25 innovative and experienced engineers, designers and workers. Free R C Hobby boasts a monthly production capacity of over 50,000 sets of various brushless motor, E S C, and accessories. 9 0 % of Free R C Hobby's products are sold abroad, spanning over 50 countries and regions, and our propulsion solutions are primarily used in unmanned aerial vehicle,electric Vertical Take-off and Landing, electric paramotor, efoil, surfboard, robotic and the electric tool industry.
Foreign trade cooperation
In the past few years, our long-term cooperation with customers has achieved great success. Not only has it led to business growth, it has also built deep customer relationships. The close cooperation with customers allows us to grow together and achieve win-win results. We value the partnership with our customers, which helps us to better understand their needs and provide better service. Working with customers is an enjoyable choice. We will continue to maintain efficient cooperation methods to create more value for customers
24S 300A ESC use
In the practical application of UAVs, different types of UAVs may choose the right electrical tuning according to their specific design needs and flight missions. For example, aerial photography drones may pay more attention to the stability of electrical adjustment and precise control ability to ensure the stability of the shooting picture; The racing UAV may have higher requirements for the response speed and power output of electric modulation to achieve high-speed flight and rapid movement changes. The design of the electric modulation is usually able to adapt to the specific type and specification of the motor used by the electric skateboard, whether it is a brushed motor or a brushless motor, to ensure a good fit with the motor and play the best performance of the motor.
Transportation channels
Have USP, FedEX , DHL, TNT, UP SIn different ways.FedEX Known for its fast transportation speed and high service quality, it can provide customers with fast and reliable express services, and is suitable for the transportation of foreign trade goods with high timeliness requirements.DHL has branches and service networks in more than 220 countries and regions around the world, with strong transportation capabilities and logistics solutions to meet the diverse foreign trade transportation needs of different customers.Mainly FedEX and DHL
Company certificate display
We strive to satisfy your needs as they define them and achievetheir expectations while delivering value. This is accomplished byimplementing thehighest industry standards to coordinate and direct
FAQ
-
Q1: Are you factory supplier? A: Yes,we are factory with more than 10 years experience. We can do both OEM and ODM. We have our own R&D team.
-
Q2: What is your MOQ? A:Normally we have a minimum order
-
Q3: Can I get a free sample?A: Generally we don't provide free sample
-
Q4: How long is the delivery time?A: In general, the delivery time is 3 to 7 working days.
-
Q5: Do you need shipping charges?A:We will charge the freight according to the weight of the goods and the distance traveled
-
Q6: How about your after-sale service? A: We provide technical support via online communication,Support returns and exchanges
-
Q7: What are the payment methods? A: We accept Paypal , Bank transfer , Credit card.
